Yeoman County 60HB Multifuel / Woodburning Boiler Stove

Yeoman County 60HB Multifuel / Woodburning Boiler StoveYeoman County 60HB Multifuel / Woodburning Boiler Stove

The Yeoman County 60HB Multifuel / Woodburning Boiler Stove (Click on images to enlarge)

Three Yeoman boiler stove models have been specifically designed with high-output integral boilers to supply your domestic hot water and central heating requirements, the Devon 50HB, the County 60HB and the County 80HB
When providing hot water and central heating, each stove is capable of feeding an average 8,000 BTU hot water cylinder and, depending on the model, up to 19 radiators

The County 60HB boiler stove is designed to supply your domestic hot water and central heating requirements or augment your existing heating system via link up technology.

The County 60HB boiler stove will provide 7.0kW heat output to a room and 11.0kW heat output to a boiler.

The County 60HB boiler stove can feed up to 15 radiators. However the exact number of radiators will depend upon how many rooms you wish to heat and the size of those rooms.

Radiators also come in a variety of sizes and capacities but, for example, a typical 400mm high x 1000mm wide, single panel radiator requires 2,500BTU/hr.

The County 60HB provides up to 45,000 BTU, enough to supply 15 average radiators and a further 8,000 BTU to feed an average hotwater cylinder

Yeoman Airwash System - to give a clearer view of the stove's flames

5mm and 10mm heavy duty steel body

4 x 1" BSP boiler tappings for flexible efficient connection to your hot water circuits

Extensive water jacket on 4 sides of the stove to ensure maximum transmission of heat to water

Highly developed boiler flue baffle system to ensure maximum heating efficiency

Top or Rear Flue - 153mm (6")

Primary air controls to manually adjust the running temperatures

Removable Tudor door crosses for more visual access

Optional thermostatic control to maintain desired running temperatures

Optional woodburning tray

As with all Yeoman high-output boiler stoves, the County boiler stove is designed for multi fuel use and incorporates an externally operated riddling grate.

Solid mineral fuels tend to provide greater calorifc values, should you wish to reduce your CO2 emissions then you can also burn a combination of smokeless fuels and logs together.

If woodburning only is your preference, you can still achieve good performance but, as logs burn best with slightly different firebox characteristics, we recommend you purchase the optional log tray which replaces the riddling system

This stove is supplied with a FREE Installation Kit and Fire Starter Kit, saving you up to £100


Call us now on 0113 2555622 for more information

CLICK HERE for a FREE Home Survey

£0inc. VAT

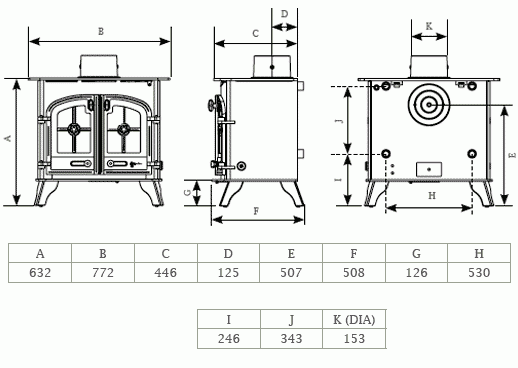

Technical Specification & Dimensions:

Heat Output : 18kW (7.0kW to room, 11.0kW to boiler)

Efficiency :N/A

Flue Size : 6" (153mm)

Fuel Type : Multifuel and wood

Flue Options : Top or Rear (Interchangeable)

Approx Weight : 170 kgs

Warranty : 5 Years for Castings & 2 Years for Steel Carcass (subject to the stove being serviced 12 months after installation)

Radiators capability: 15 (Guide only)
