Stovax View 8HB Boiler Stove

The Stovax View 8HB Boiler Stove

The Stovax View 8HB is based on the View 8 wood burning and multi fuel stove, with the added feature of being able to output heat to water.

The View 8HB boiler stove will give 4.9kW heat output to a room, 8.2kW heat output to a boiler and is able to power up to 8 standard sized radiators.

The stove has a cast iron door and large glass window to enjoy the burning flames.

There is an optional extra of a glass top plate for a more contemporary look, and the plinth has a glass front as standard.

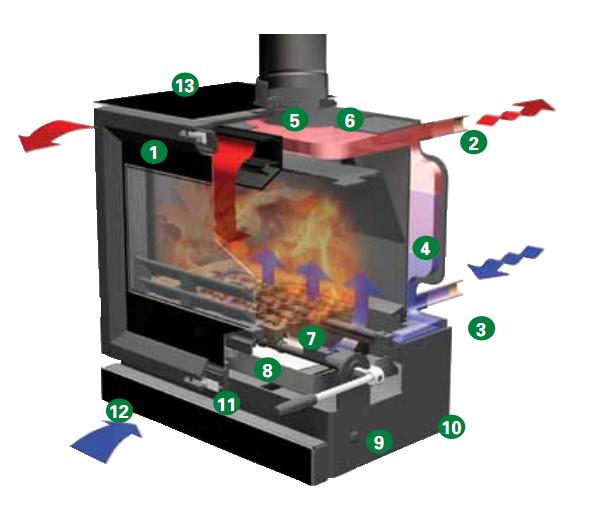

1     5mm and 8mm heavy duty steel body.

2     Excellent heat output to water when burning solid fuels or wood.

3     4 x 1” BSP boiler tappings for flexible efficient connection to your

       hot water circuits.

4     Extensive water jacket on 4 sides of stove to ensure maximum

       transmission of heat to water.

5     Highly developed boiler flue baffle system to ensure maximum

       heating efficiency.

6     Top or rear flue exit.

7     Specially designed reciprocating grate ensures effective removal

       of ash from the fuel bed.

8     Large ash collection tray.

9     Discreet external riddling socket, with removable tool.

10   Levelling system to ensure complete stability on uneven surfaces.

11   Primary air controls to manually adjust the running temperatures.

12   Airwash helps to keep the glass clear and to control the running

       temperature when burning wood.

13   Optional glass top plates in top & rear flue.

14   Optional thermostatic control to maintain desired running

       temperatures (not illustrated).

15   Optional woodburning tray (not illustrated).

16   Stainless steel door handle, with self-locking function

       (not illustrated).

Call us now on 0113 2555622 for more information

CLICK HERE for a FREE Home Survey

£0inc. VAT

Technical Specification & Dimensions:

A: 563mm    B: 572mm    C: 363mm    D: 105mm     E: 478mm

F: 153mm    G: 449mm    H: 10mm      J: 440mm    K: 245mm

L: 430mm    M: 224mm    N: 317mm



                     (Optional Glass Top Plate)

Multi-fuel (with external riddling): Yes

Approved for Smoke Control Areas: No

Tracery or clear door versions (matt black): No

High efficiency heating: 81%

Ashtray: Yes

Airwash: Yes

Maximum heat output: 4.9kW to room, 8.2kW to room

Fuel: Wood and Multifuel

Maximum log length: 400mm

Flue connection: 153mm (6”) top or rear

Finish: Midnight Black Metallic
